100times/Min Reciprocating Drawing Welded Wire Mesh Machine 160KVA

Name: 100timesMin Reciprocating Drawing Welded Wire Mesh Machine 160KVA
Brand: Huayang
Price: 1 USD

Brand Name : Huayang

Model Number : R-DHW

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 30 days

Packaging Details : 1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.

Product name : Blue Galvanized Welded Wire Mesh Machine

Raw material : Galvanized wire, black wire,stainless steel wire

Control System : PLC Touch Screen

Current : Alternating Current

Production Capacity : 20 sets/month

After-sales Service : Free spare parts, Online support, Video technical support

Welding Speed : 60-100times/min

Minimum mesh size : 12.7mm

Contact Now

Blue Galvanized Welded Wire Mesh Machine

1. Product description

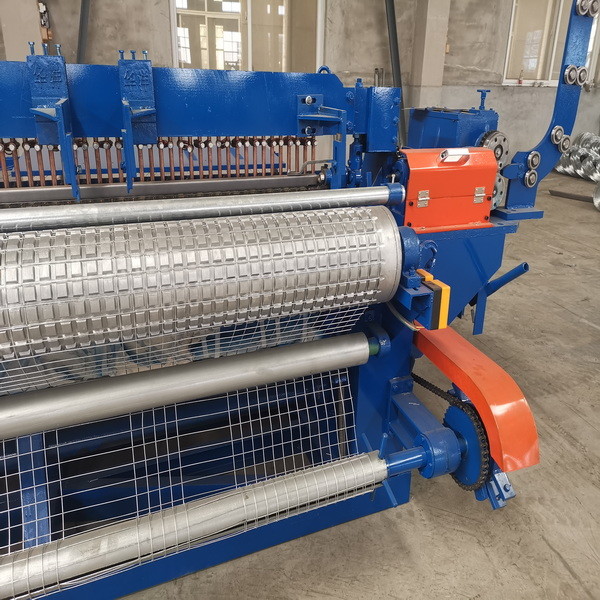

The blue galvanized welded wire mesh machine is used for making wire mesh. Servo motor galvanized roll mesh welding machine is used for making wire mesh. The drawing mode: servo motor reciprocating drawing, pneumatic tightening cross wire, to ensure the precise position of the drawing mesh. Each of the welding transformer is 160KVA. And the welding transformer is water cooling. And the welding electrodes are also water cooling.

2. Technical parameter

Model	Mesh width	Minimum mesh size (inch)	Wire diameter(mm)	Welding speed (rows/min)	Roll mesh length (m)	Other available mesh size (inch)
R- DHW2	2m	1/2x1/2	0.45-0.85	90-120	130	1/2x1, 1x1/2, 1x1, 2x2
R- DHW2	2m	1/2x1/2	0.6-1.3	90-120	110	1/2x1, 1x1/2, 1x1, 2x2
R- DHW2	2m	1/2x1/2	0.8-1.6	80-90	100	1/2x1, 1x1/2, 1x1, 2x2
R- DHW2	2m	1x1	0.45-0.85	90-120	130	1x2, 2x1, 2x2, 2x4
R- DHW2	2m	1x1	0.6-1.3	90-110	110	1x2, 2x1, 2x2, 2x4
R- DHW2	2m	1x1	0.8-1.6	90-110	100	1x2, 2x1, 2x2, 2x4
R- DHW2	2m	1x1	1.4-2.6	80-90	80	1x2, 2x1, 2x2, 2x4

3. Application area

The blue galvanized welded wire mesh machine can be widely used in steel welded wire mesh production for concrete reinforcement, panels in construction and security wire mesh fences, in a small area and noiseless.

4. Advantages

a. The welding time and welding current can be adjusted on the control panel to guarantee solid welding.

b. Automatic winding, automatic stop after reaching the set length.

c. Only need one worker to operate this machine.

d. The use of sub - welding, reduce the power load, energy efficient.

e. Mesh pulling system adopts servo motor back and forward to ensure the mesh opening accurately and can be adjusted freely within a certain range.
